Cyclone Conformal Cooling Cores

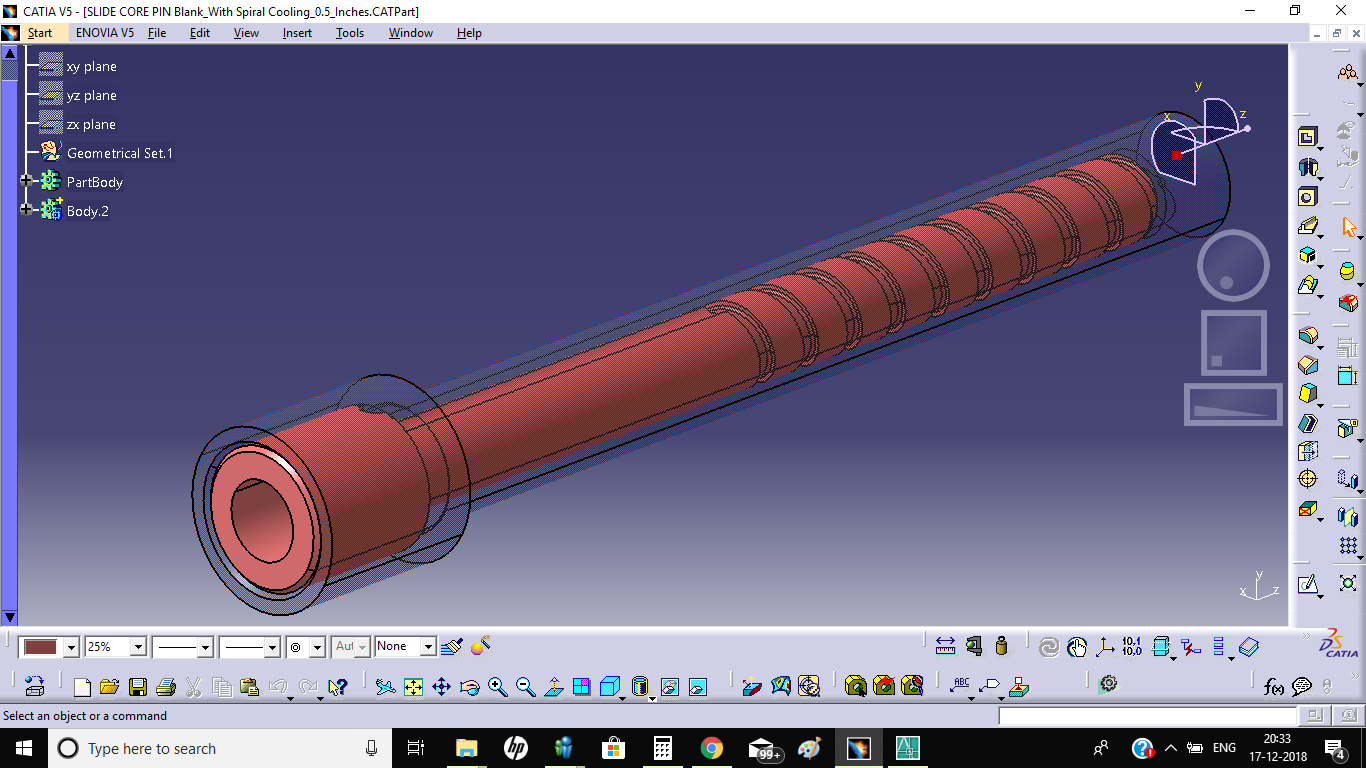

Cyclone Core™ blanks are H-13 core pin blanks with internal spiral water line geometry. These can be ordered for finishing by your in-house tool shop, or send us your model if you would like to order with detail completed. Cyclone cores are ideal for use as slide cores or sub-inserts to prevent or reduce soldering.
|Part Number||D||TL||HD||HT||IT||WT||Water NPT|
|CC-500||12.7||152.4||19.05||19.05||3||1.85||1 x 1/8 NPT|
|CC-750||12.7||152.4||32||19.05||6||3.34||2 x 1/16 NPT|
